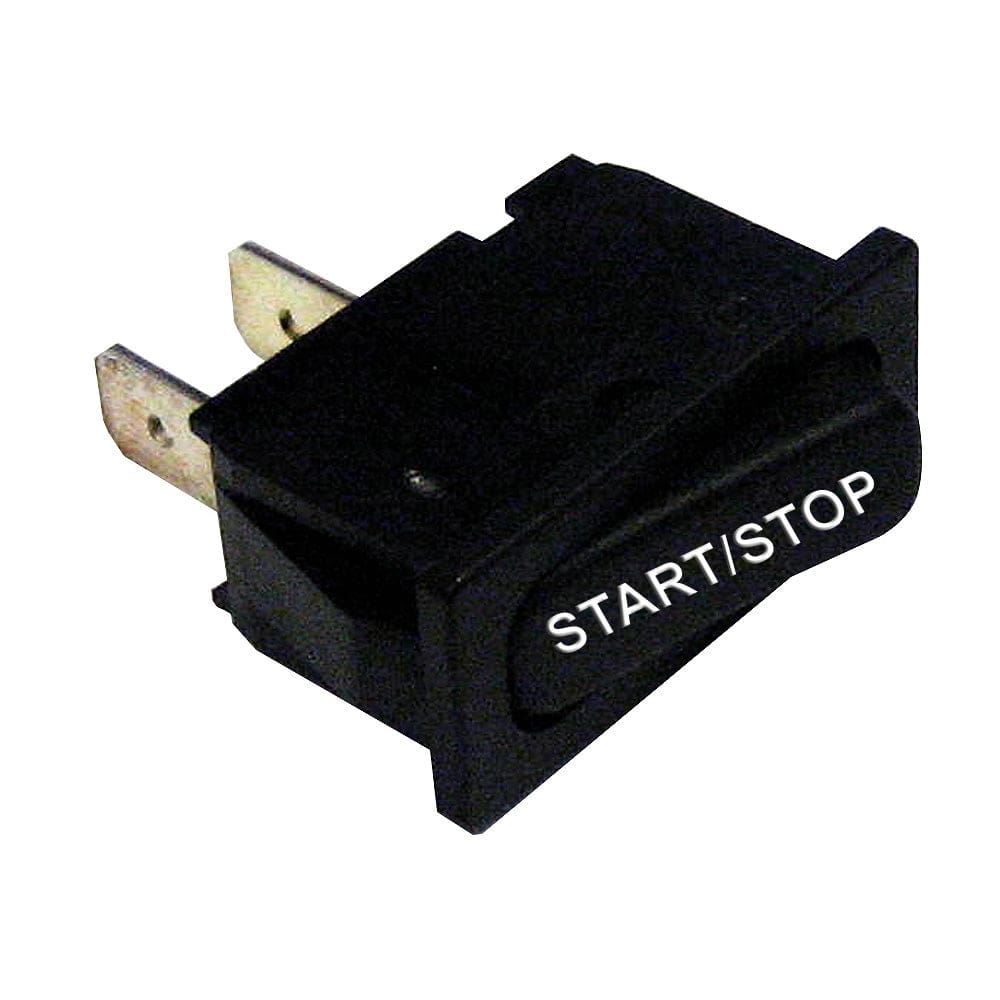

Paneltronics SPDT (ON)/ OFF/ (ON) Start/ Stop Rocker Switch - Momentary Configuration (Pack of 3)

Paneltronics SPDT (ON)/ OFF/ (ON) Start/ Stop Rocker Switch - Momentary Configuration (Pack of 3)

$34.28
$34.28
Sale Sold out
Rocker Switch

  • UL Recognized and CSA Certified
  • Single Pole Non-Illuminated
  • Snap-in Mounting
  • Replacement Switches for Paneltronics' Deluxe and Premier Panels

Specifications:

  • Maximum Contact Rating: 6 Amps @ 125VAC or 4 Amps @ 250VAC
  • Contacts: Silver Plated Copper
  • Terminals: Silver Plated Copper 1/4" (6.3mm) Quick Connects
  • Operating Temperature: -4 deg F (-20 deg C) to 131 deg F (55 deg C)
  • Housing and Actuator: Black Thermoplastic
  • Flammability Rating: UL 94 V-2
  • Rated IEC 60529: IP40
  • Panel Thickness: 1/8" (3.18mm)
  • Recommended Panel Cut-Out: 1.188" (30.18mm) x 0.468" (11.89mm)
    Manufacturer Part Numbers: 001-330
