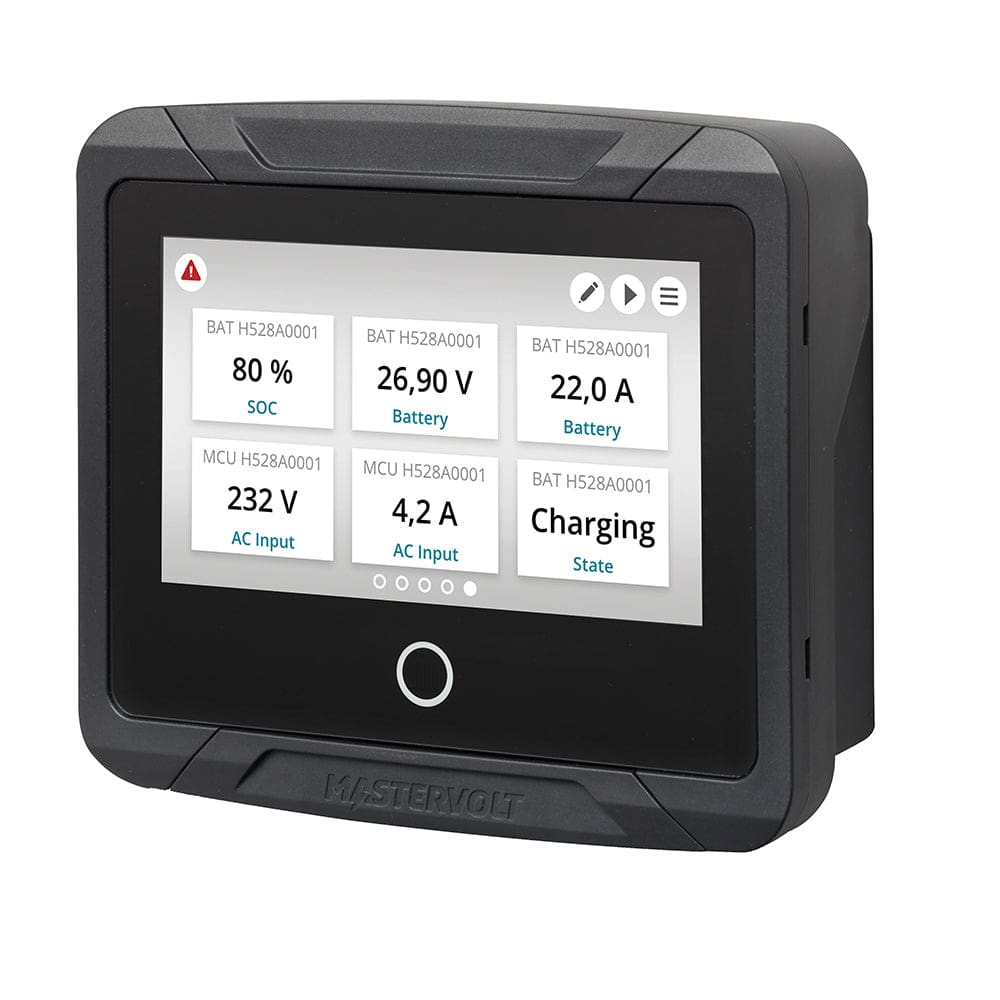

Mastervolt EasyView 5 Touch Screen Monitoring and Control Panel

Mastervolt EasyView 5 Touch Screen Monitoring and Control Panel

Regular price $489.39
Regular price Sale price $489.39
Sale Sold out

EasyView 5

Waterproof system monitor with daylight display and intuitive touch control.

Controlling your Mastervolt system has never been easier. The EasyView 5 features a sharp, waterproof display which is clearly readable in daylight. Thanks to the color touch screen and multi-language menu, the display is a pleasure to operate. Easily customizable favorite pages show all relevant system information at a glance.

Features

  • Water proof, daylight readable color display
  • Intuitive touch control
  • Customizable favorite pages
  • Log book for warnings and alarms
  • Buzzer and Home button
  • Easy mounting: Front mount, wall mount or retrofit
  • MasterBus powered or MasterBus powering by 12 V DC input
  • Easy updating through integrated USB

Applications

The EasyView 5 completes any MasterBus system. Applications include yachts, vehicles and stationary systems. Markets include marine, mobile (recreational & professional), infra-structure, offshore, off-grid and industrial markets.

Specifications

  • Display: 4.5 inch high contrast display with capacitive touch control. Resolution: 480x272 pixels, Color depth: 16 bits
  • Languages: English, Dutch, German, Spanish, Italian, French, Finnish, Swedish, Norwegian, Danish
  • IP degree: IP65 waterproof front
  • Power supply: MasterBus powered or MasterBus powering through 12/24 V input
  • Power Consumption: < 160 mW (idle mode)
  • Alarm: Buzzer integrated
  • Connections: 2 x MasterBus, USB, 12/24 V auto ranging input for optional external power
  • Mounting: Front mount, wall mount and MasterView Easy retrofit
  • Dimensions, HxWxD: 113 x 127 x 43 mm

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.


Manufacturer Part Numbers: 77010310
Owner's Manual (PDF)
Brochure Literature (PDF)
Installation Guide (PDF)
