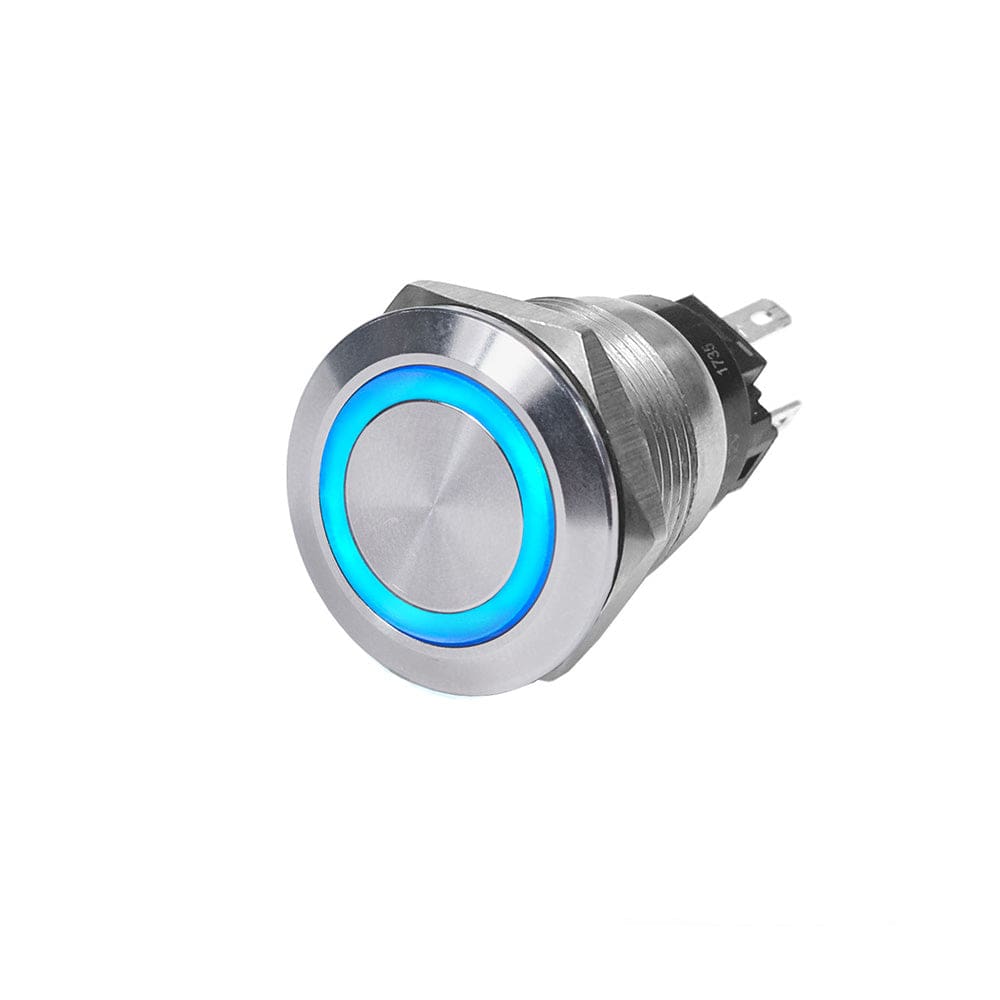

Blue Sea 4161 SS Push Button Switch - Off-(On) - Blue - 10A

Blue Sea 4161 SS Push Button Switch - Off-(On) - Blue - 10A

Regular price $28.49
Regular price Sale price $28.49
Sale Sold out

4161 SS Push Button Switch - Off-(On) - Blue - 10A

  • 10A continuous
  • Single Pole Double Throw or Single Pole Single Throw
  • Can be wired for normally open or normally closed
  • Installs with .110inch quick connects (included in retail package)

Specifications

  • Action: OFF-(ON)
  • Amperage: 10A @ 12V DC
  • Nominal Voltage: 12V DC
  • Maximum LED Operating Current: 20mA
  • Minimum Operating Temperature: -10° C
  • Maximum Operating Temperature: 70° C
  • Minimum Storage Temperature: -55° C
  • Maximum Storage Temperature: 85° C
  • Illumination: Independent – Separate contacts for LED power
  • Mounting Hole: 19mm
  • Switching Cycles: 18,000
  • Termination: 5 – 0.110inch Quick Connect terminals

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.


Manufacturer Part Numbers: 4161
Installation Guide (PDF)
