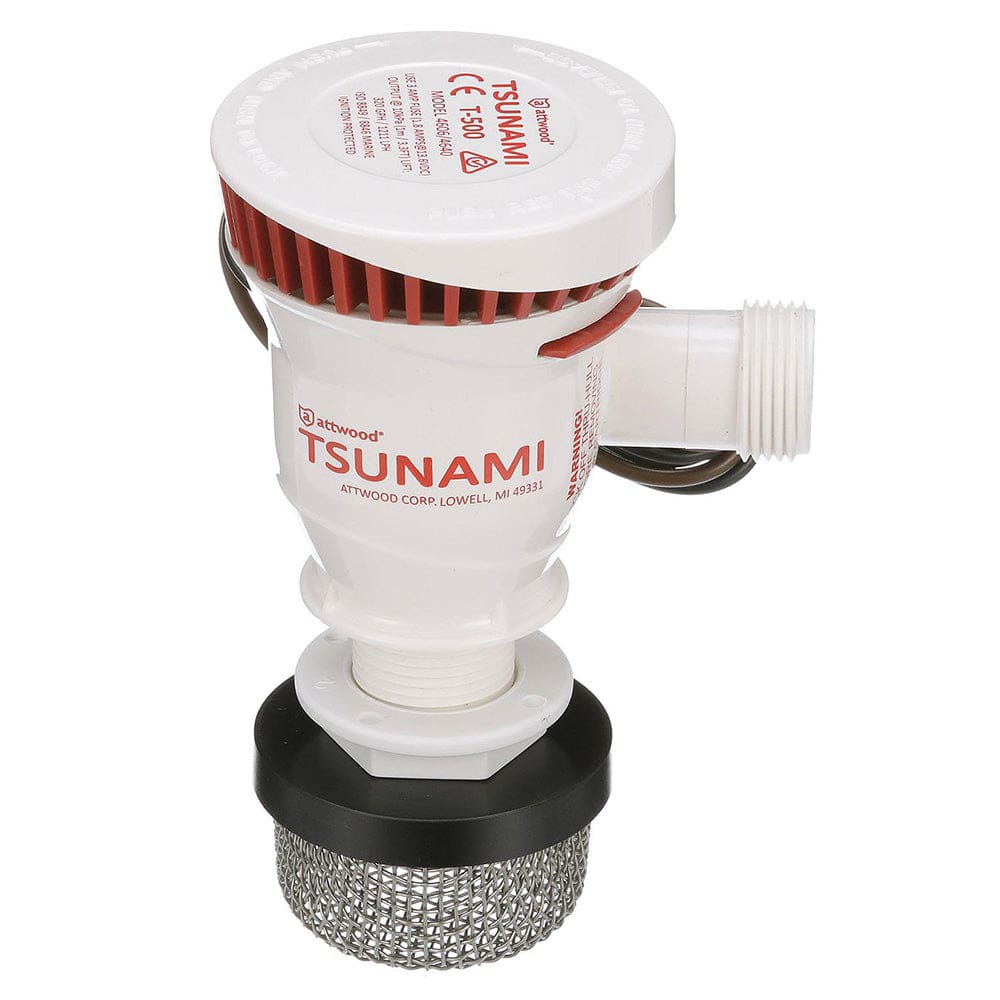

Attwood Tsunami T500 Recirq Aerator Kit - 500 GPH

Attwood Tsunami T500 Recirq Aerator Kit - 500 GPH

Regular price $57.79
Regular price Sale price $57.79
Sale Sold out

Tsunami T500 Recirq Aerator Kit - 500 GPH

The T500 Recirq Livewell Aerator Kit is recommended for fishing boats with built-in live wells that are not equipped with a thru-hull recirculation system. The pump is sealed and can occasionally be submerged; however, the electrical wires must never be submerged.

Required For Installation:

  • In-line fuse holder with 3-ampere fuse
  • Waterproof wire butt-connectors for #16 AWG wire
  • Drill with 1-1/16" (27 mm) or 1-1/8" (30 mm) hole saw
  • Phillips head screwdriver
  • Brown and black lengths of #16 AWG insulated wire
  • Polyurethane marine sealant for pump mounting threads
  • Dash-mounted two-way switch
  • Wrench for 1-1/4" and 1-1/2" nut
  • 23" length of hose is provided; if a longer length is needed, use a 3/4" (19 mm) inner diameter, smooth bore, reinforced hose

Specifications:

  • GPH (Gallons Per Hour): 500
  • Amp Fuse: 3
  • DC Voltage: 13.6
  • Outlet Hose Inner Diameter: (inch) 3/4" / (mm) 19

*Do not use aerator kit to remove gasoline, oil or other flammable liquids


Manufacturer Part Numbers: 4253-7
Installation Guide (PDF)
